Federal Express (FedEx)

Account Number and Services

When you add a new FedEx carrier account (Add Carrier > Carrier > Federal Express) , Parcel displays the screen to enter the FedEx account number appears. On this screen, you can also select the FedEx services with which you will ship packages from this location.
Configuration requirements
Before configuring a FedEx carrier, you need complete to set up an account with FedEx and obtain a FedEx account number for each FedEx carrier that you plan to configure. You also need to configure your account on the FedEx Ship Manager® Server, including activating the List Rates download function (see the following Caution).

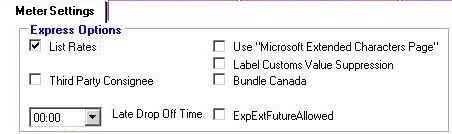

Caution: When configuring the FedEx Ship Manager® Server for your FedEx account, for Parcel to work correctly with this account you need to select (check) the List Rates check box on the Meter Settings tab as shown in the following illustration:

This is because the List Rates download from the FedEx Ship Manager® Server is required for all services even if you do not need or use this feature.
To configure the FedEx Account Number and Services, complete these steps...

In Account Number field, type your FedEx account number for this location.
In Carrier Code field, type a name for the carrier as you want it to appear in this Configuration Tool and in Parcel. For example, if you are setting up more than one FedEx account for this location, you might want to label these FedEx-1, FedEx-2, etc.

In the Services section, select the services that you will use to ship FedEx packages from this location by selecting service, and then click ADD to move the selected service from the left-hand column to the right-hand column. To select and move all of the services at once, click ADD ALL.

Caution: The International Direct Distribution Surface Solution® services (services prefixed with IDDSS) can be used only with a U.S., Canada, or Mexico origin location. Do not add these surfaces to a FedEx carrier for any other location.

You can also use the Move Up and Move Down (up arrow and down arrow) buttons on the right to change the order of the services in the list of following services:

Service	Description
FedEx Express Saver®	Economical air service delivery – domestic.
FedEx Standard Overnight®	Next day delivery by the end of the day – domestic.
FedEx Home Delivery®	Ground delivery to a residence.
FedEx Priority Overnight®	Next day mid-morning/mid-afternoon delivery – domestic.
FedEx Ground®	Next day mid-morning/mid-afternoon delivery – domestic.
FedEx First Overnight®	Early morning delivery – domestic.
FedEx 3Day® Freight	Third day delivery of freight – domestic.
FedEx 2Day®	Second day delivery – domestic.
FedEx 2Day® Freight	Second day delivery of freight – domestic.
FedEx 1Day® Freight	Next day delivery of freight – US and UK domestic.
FedEx 2Day® A.M.	Second business day delivery by 10:30 AM to most business areas. For certain shipments to Alaska and Hawaii, delivery is in three business days.
FedEx Economy	Delivery typically in 2–5 business days. Note: This service is only available from a Canadian origin and for UK domestic shipments.
FedEx First Overnight® Freight	Early morning delivery of freight – domestic.
FedEx Next Day® By 9 A.M.	UK domestic service – delivery by 9 AM next day.
FedEx Next Day® By 10 A.M.	UK domestic service – delivery by 10 AM next day.
FedEx Next Day® By 12 Noon	UK domestic service – delivery by 12 noon next day.
FedEx Next Day®	UK domestic service – delivery by close of business next day.
FedEx International Priority DirectDistribution®	Consolidated customs clearance of two or more international shipments.
FedEx International Economy® Freight	Economical air service delivery of freight – international.
FedEx International Priority® Freight	Overnight delivery of freight – international.
FedEx International Economy®	Economical air service delivery – international.
FedEx International Priority®	Overnight delivery – international.
FedEx International First®	Fastest overnight delivery – international.
FedEx International Ground®	Ground service – international.
FedEx IDDSS - FedEx Home Delivery®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - ground delivery to a residence via IDDSS.
FedEx IDDSS - FedEx Ground®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - ground delivery via IDDSS.
FedEx IDDSS - FedEx Priority Overnight®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - Next day mid-morning/mid-afternoon delivery via IDDSS.
FedEx IDDSS - FedEx 2Day®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - second day delivery via IDDSS.
FedEx IDDSS - FedEx Standard Overnight®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - next day delivery by the end of the day via IDDSS.
FedEx IDDSS - FedEx First Overnight®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - early morning delivery via IDDSS.
FedEx IDDSS - FedEx Express Saver®	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - economical air service delivery via IDDSS.
FedEx IDDSS - FedEx 1Day® Freight	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - next day delivery of freight via IDDSS.
FedEx IDDSS - FedEx 2Day® Freight	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - second day delivery of freight via IDDSS.
FedEx IDDSS - FedEx 3Day® Freight	FedEx International DirectDistribution Surface Solutions (IDDSS), US, Canada, Mexico origin only - third day delivery of freight via IDDSS.
FedEx Europe First® (EU origin only)	Intra-European next day, door-to-door, customs-cleared (where applicable) service with morning delivery time depending on destination.

When you are done configuring this page, click ADD in the lower-right corner of the page to save the settings. Otherwise, click CANCEL to cancel the settings.

On clicking Add, the FedEx End-User License Agreement screen appears with following three option buttons as follows:

Click this button	To...
Accept	Proceed with adding the carrier.
Decline	Does not proceed with adding the carrier. It displays the following warning message: "Cannot register Carrier unless the FedEx End User License Agreement is Accepted" with two option buttons: OK and Cancel Click OK to decline the registration or click Cancel to close the warning message box.
Print	Print the EULA Statement.

Disclaimer: The FedEx service marks are owned by Federal Express Corporation and are used by permission.
To continue configuring FedEx, complete the following sections:

HostNames
AccountDefaults

Host Names

Use the Host Names page to define the hosts that you use to connect to the FedEx server. You can add, edit, or delete host names from the grid.

To add a Host Name Record

Click ADD icon at the top of the screen. The Add Record dialog is displayed.

Complete the boxes as follows:

In this box...	Do this...
Host	Type the IP address of the computer that connects to the FedEx server.
Port	Type the port number that connects to the FedEx server.
Meter Number	Type the FedEx-supplied meter number for this account. This number must be from 5 to 9 digits in length.
Status	This drop-down list automatically registers the status (active or inactive) of the FedEx Ship Manager® Server. Status appears in this field with the following values: 0 = active server 2 = inactive server
Test Message	Type the test message to verify that the communication with the FedEx server is working.
Test Response	This field is for informational purposes only. This is the expected result of sending the test message.
European	If this account's Ship From address is in Europe, select Yes from the drop-down list. If not, select No.
Report Dir	Type the path to the directory to which to download reports from FedEx Server.
FTP Flag	If this account uses FTP to send files to the FedEx server, select Yes from the drop-down list. If not, select No.
FTP User	If this account uses FTP to send files to the FedEx server, type the FTP user name.
FTP Password	If this account uses FTP to send files to the FedEx server, type the FTP password.
FTP Port	If this account uses FTP to send files to the FedEx server, type the FTP port number.
Label Dir	Type the path of the label directory where you want the FedEx labels to be generated to. All FedEx labels are printed from the FedEx Server (and copied to this label directory). The path has this format: IP address of your FedEx Serverfolder that you want the labels to be generated in.
Label Printer ID	Type the name and path of the label printer that you use to print FedEx shipping labels.
Server Version	This drop-down list is for informational purposes only and displays the version of the FedEx Ship Manager® Server. Currently, this field should display a default value of 20.x
ETD Report Shared Path	Type the shared path of the FedEx Ship Manager® Server, where FedEx ETD documents get uploaded. This is a mandatory field for ETD shipment. The Shared Path should have Read/Write Permissions. The path has this format: IP address of your FedEx Serverfolder that you want the FedEx ETD documents to be uploaded in.
ETD Report Directory Path	Type the directory path of the FedEx Ship Manager® Server, where FedEx ETD documents get uploaded. This is a mandatory field for ETD shipment. The path has this format: C:folder that you want the FedEx ETD documents to be uploaded in.

Click SAVE to save the new record. Otherwise, click CANCEL to cancel the new record.

To edit a Host Name Record

Click the EDIT icon in the left column in the row containing the record that you want to edit.
A dialog is displayed. Edit the fields as needed.
Click SAVE at the bottom of the dialog box to save the changes or click CANCEL to cancel your changes.

To delete a Host Name Record

Click the DELETE icon in the left column in the row containing the record that you want to delete.
A confirmation dialog box appears. Click OK to delete the record. Or click Cancel to keep the record.

Account Defaults

Overview

Use the following tabs on the FedEx Account Defaults page to configure the default information to use with this FedEx account.
Tabs

Close
Default
Label
Rate
Ship
Dangerous Goods
Transborder
Tracking
Report
Time in Transit
ETD|IGC

Close Tab

Use the Close tab on the FedEx Account Defaults page to enter closing settings for this FedEx account.

Report Directories section

In this box...	Do this...
Consolidation	Type the directory to which to download consolidation reports from the FedEx server.
All FedEx	Type the directory for all FedEx reports.
Local	Type the local directory for reports.
Temp Consolidation	Type the temporary directory to which to download consolidation reports from the FedEx server.
Wait for Server	Select this check box if you want Parcel to wait for the FedEx Ship Manager® Server to finish generating reports. Parcel will wait for up to one hour and 15 minutes, checking every half second to see if the server has finished.
Ground Acct No	Type the account number that you use for FedEx Ground® shipments

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Default Tab

Use the Default tab on the FedEx Account Defaults page to enter the following settings for this FedEx account.

In this box...

Do this...

Purge Days

This field is not currently used. Previously, it indicated the number of days after which a database script performs a purge on the Parcel carrier database. Currently, this script is replaced by a purge utility.

Admissibility Package Type

From the list, select the admissibility package type that you want to use as the default as follows. The admissibility package type is required for all FedEx Express shipments to Canada:

Bag	Container	Pallet
Barrel	Crate	Reel
Bundle	Carton	Roll
Box	Cylinder	Sack
Other Packaging	Drum	Shrink Wrapped
Basket or hamper	Env

Customer Charge

Depending on the Customer Charge Type (see following row), type any customer charge to be added to a shipment (in addition to other accessorials such as Freight Charge) as follows:

If the Customer Charge is a fixed amount, type the amount to two decimal places (without the currency symbol). For example, if the Customer Charge is the fixed amount of $4.00, type 4.00.
If the Customer Charge is a percentage of the shipment cost, type the percentage to two decimal places without the percent sign (%). For example, if the Customer Charge is 10%, type 10.00.

Customer Charge Type

From the drop-down list, specify whether customer charge is to be taken as a fixed amount or a percentage amount:

Fixed
Percentage

Ground Package Reporting

FedEx Ground Package Reporting identifies the value to be used as the Package ID for Multi-weight reports. Select one of the following values from the drop-down list:

Customer Reference Number
Purchase Order Number
Invoice Number
Shipment Identifier Number

Return Response in API

This field determines if the entire response from the FedEx FSMS server is included in the API response from the DIServer.
If you want Parcel to capture all of the data returned by the FedEx server in the API Request Response, select this check box as follows:

Selecting (activating) the check box causes the Parcel DIServer to capture all of the data elements that are returned by the FedEx server and include this data string in the Parcel API response.
Leaving this check box blank (the default) means that the data returned by the FedEx server are not included in the Parcel API response.

PSHP/CSHP Automatic Saturday Pickup

Select this check box to automatically set the Saturday Pickup flag when performing PSHP and CSHP transactions.
Note: By default, this option is not selected.

Third Party Consignee

Select check box to make the FedEx International Priority Third Party Consignee (TPC) contract service the default for FedEx International Priority® and FedEx International Priority Freight® Services. For more information on this contract service, see the following Help topic: FedEx - Third Party Consignee International Priority Service .

International Returns Special Instructions

Type the International Returns Special Instructions.

Extra Hours Service

Select this check box if you want to enable the FedEx Extra Hours Service for a FedEx shipments.
For more information on this service, see the following Help topic: FedEx - Extra Hours Service .
Note: This check box is unchecked by default.

FedEx International Connect Plus®

Select this check box if you want to enable the FedEx International Connect Plus® Service for a FedEx shipments.

For more information on this service, see the following Help topic: FedEx International Connect Plus® Service .
Note: This check box is unchecked by default.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Label Tab

Use the Label tab on the FedEx Account Defaults page to enter label settings for this FedEx account.
Ship From section

In this box...	Do this...
Print Empty Buffer	To print the empty buffer on the label, select this check box.
Template Directory	Type the directory path where FedEx label templates reside on the Parcel server.
Local Label Dir	Type the local directory for labels. All FedEx labels are generated from the FedEx Server. In the Label Directory field (in the Host Names page ), you specified the directory that the FedEx Server will generate the labels to. If you specify a local directory path in this field, the same label files are copied to this local directory.

Server Add section

In this box...	Do this...
Heat	For the thermal printer used to print FedEx thermal labels, type the number by which to increase the heat applied to the print head element to thereby darken the printing on the label. You must type a value that is within the specified range provided by the printer manufacturer. The default of zero for all except the Eltron (which is 10), is the setting of the printer out of the box.
Rotation	For the thermal printer used to print FedEx thermal labels, type the number by which to rotate the label stock to start printing lower on the label. Rotation is also known as vertical offset. You must type a value that is within the specified range provided by the printer manufacturer.
Speed	For the thermal printer used to print FedEx thermal labels, type the number by which to increase the speed (inches per second) of printing the label.

Server Remove section

In this box...	Do this...
Heat	Type the number by which to decrease the heat applied to the print head element to thereby lighten the printing on the label. You must type a value that is within the specified range provided by the printer manufacturer. The default of zero for all except the Eltron (which is 10), is the setting of the printer out of the box.
Rotation	For the thermal printer used to print FedEx thermal labels, type the number by which to rotate the label stock to start printing higher on the label. Rotation is also known as vertical offset. You must type a value that is within the specified range provided by the printer manufacturer.
Speed	For the thermal printer used to print FedEx thermal labels, type the number by which to decrease the speed (inches per second) of printing the label.

Server Labels section

In this box...	Do this...
Customs Count	Type the number of additional copies of the Customs label to print. These will print in addition to the normal number of labels. This field corresponds to the International Customs Label Copies field on the Label Settings tab of the FSMS Configuration Utility. Valid values are 0, 1, 2, or 3. The default is 0.
Flag	To pass the label values for IPD labels from Parcel to the FedEx Server so that the FedEx Server can print the IPD label, type 'I' (capital i).
Format	Type the three-character value that corresponds to the printer type. This is required when printing labels to a FedEx Server-supported thermal printer or laser printer, selecting a .png label, or for indicating the label buffer type to be saved to file. Although FedEx provides only the Zebra DA402 printer, FedEx Server will print to any Zebra printer that supports ZPL or ZPL II. Valid values are as follows: 177 - Unimark U550 4x6 doc tab 277 - Unimark U550 4x6 non doc tab 199 - Eltron LP2348 4x6 doc tab 199 - Eltron LP2443 4x6 doc tab 299 - Eltron LP2348 4x6 non doc tab 299 - Eltron LP2443 4x6 non doc tab 188 - ZebraDA402 4x6 doc tab 288 - ZebraDA402 4x6 non doc tab PNG - Portable Network Graphics (.png) DIB - Laser labels
Manifest Count	Type the number of additional copies of the Manifest label to print. These will print in addition to the normal number of labels. Valid values are 0, 1, 2, or 3. The default is 0.
Orientation	Type the number that indicates where the doc tab portion of the label (doc tab is a perforated portion that can be torn off): 3 - Print doc tab at bottom of label 4 - Print doc tab at top of label
Shipper Count	Type the number of additional copies of the Shipper label to print. These will print in addition to the normal number of labels. Valid values are 0, 1, 2, or 3. The default is 0.
Thermal Ind	Type the one-character value for the thermal indicator as follows: N - no label B - 2D bar code request for producing custom labels F - Thermal label buffer - multiple files - each label buffer is saved to an individual file - the package's tracking number is used as the file name (FedEx Ground COD label file names begin with CR) - for international multi-piece shipments, the Master Air Waybill buffer is saved to the same file as the buffer for the first piece. S - Thermal label buffer - single files - all label buffers are saved to a single file - use for FedEx international multi-piece shipments only (not including IPD/IDF or Transborder Distribution - use F for those shipments). *Note:* Thermal label buffers are saved to the FedEx Server database prior to printing to allow for label reprinting up to 48 hours after shipment processing. This impacts the speed at which thermal labels are printed. To increase the label print speed, use a value of F or S here and indicate the printer path in FedEx field 537. Doing this will cause the label buffer to be sent directly to the printer and not be saved to the FedEx Server database. Labels produced this way are not available for reprinting.
AWB Label Count	From the drop-down list, select the number (from 1-10) of Air Way Bill (AWB) labels for each shipment at the DC level. FedEx in the APAC region requires different quantities of AWB labels for each shipment.
Apply International Char Set	Select (check) this check box to print international characters on the label. The default is not to print these characters (check box is unselected).
Zebra Print Speed	Accept the default (8) or set the print speed for labels printed with a Zebra printer. Valid values (from the Zebra Printing Language manual) are as follows: A or 2 – 2 in./sec. B or 3 – 3 in./sec. C or 4 – 4 in./sec. 5 – 5 in./sec. D or 6 – 6 in./sec. E or 8 – 8 in./sec.
Tires	Processing Tires Shipment functionality: In the FedEx carrier Account Defaults screen, select the Label tab. Select one of the following labels from the dropdown: 4 x 8.5” Tire Label 4 x 10.5” Tire Label Check the Tires checkbox from the package level option. Go to Workstation > Printer Map screen, select one of the following Tires Label from the drop down: Zebra PNG

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Rate Tab

Use the Rate tab on the FedEx Account Defaults page to enter rating settings for this FedEx account.

In this box...	Do this...
Apply Dis. Chrg to Base Chrg	To apply a discount percentage to the base charge, select this check box.
Apply Base Discount	To apply a base discount to the rate, select this check box.
Apply Oversize Charge	To apply an oversize charge to the rate, select this check box.
Dimensional Units	From the list, select the unit to use for dimensional weight: Inches Centimeters
Additional Handling Fee	Type the fee for Additional Handling service.
Oversize Fee	Type the fee for oversized packages.
Alternate Billing Type	Select this check box to use an alternate billing type.
Set Dimensions to Minimums	Select this check box to automatically set dimensions to the FedEx minimums if the user enters dimensions that the FedEx Server will reject because they are too small.
Use Load Balancing	Select this check box to use more than one FedEx Server simultaneously for a single account via a round-robin approach.
Weight Units	From the list, select the unit of measure to use for actual weight: Pounds Kilograms
Exclude the Canada Taxes and Fuel Surcharge	Select this check box to exclude the Canada taxes and fuel surcharge from the Total Cost of the shipment for Intra-Canada Shipments. *Note:* By default, this option is selected.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Ship Tab

Use the Ship tab on the FedEx Account Defaults page to enter shipping settings for this FedEx account.

Delivery Times section

In this box...	Type the...
1st Freight	Time by which FedEx delivers 1Day Freight shipments. Use this format: HHMM. For example, if the delivery time is 11:00 a.m., type 1100.
2nd Freight	Time by which FedEx delivers 2Day Freight shipments. Use this format: HHMM. For example, if the delivery time is 11:00 a.m., type 1100.
3rd Freight	Time by which FedEx delivers 3Day Freight shipments. Use this format: HHMM. For example, if the delivery time is 11:00 a.m., type 1100.
Ground	Time by which FedEx delivers Ground shipments. Use this format: HHMM. For example, if the delivery time is 3:00 p.m., type 1500.
Residential	Time by which FedEx delivers residential shipments. Use this format: HHMM. For example, if the delivery time is 4:00 p.m., type 1600.

Middle section

In this box...	Do this...
Auto Confirm IPD	Select this check box to automatically confirm IPD shipments. This means that when you close FedEx, Parcel will automatically confirm all open IPD shipments (so you do not have to confirm them separately in Parcel).
Calculate Dimensional Weight	Select this check box to enable Parcel to calculate dimensional weight.
Domestic Dim Weight Factor	Type the dimensional weight factor for domestic shipments. This is used to calculate dimensional weight.
International Dim Weight Factor	Type the dimensional weight factor for international shipments. This is used to calculate dimensional weight.

COD Fees section

In this box...	Do this...
Standard	Type the surcharge for C.O.D. accessorial with a non-freight shipment.
Freight	Type the surcharge for C.O.D. accessorial with a freight shipment.
Variable Charge %	Type the percentage to use for the C.O.D. variable charge. Type only the digit. Do not type the percent symbol.
Rate Currency	From the drop-down list, select the currency with which to rate FedEx shipments: Canadian Dollar US Dollar
Customs Currency	From the drop-down list, select the currency to use for the Declared Value amount for Customs purposes: Canadian Dollar US Dollar
Location ID	Type the location ID (used by FedEx Server) for this location.
DIServer Hostname	Type the host name of the DIServer. If the DIServer is installed on the same machine as the FedEx Server, type localhost. Note: The DIServer is the Parcel application server.
DIServer Port	Type the port number that the DIServer is connected to.
Domestic Ship Singleshot	Select this check box to allow single shot domestic shipments. Singleshot allows Parcel to ship multi-piece shipments that can be shipped in a single transaction to the FedEx Server as one transaction instead of using an open ship request and then adding packages to it.
FedEx Ground ® Electronic C.O.D. (E.C.O.D.)	Select this check box if you can ship FedEx Ground ® electronic COD packages.
European Origin	From the drop-down list, select Yes if your Parcel system supports European shipping origins. Otherwise, select No.
Exporter IRS EIN	Type the IRS (Social Security Number) or EIN (Employer Identification Number) of the exporter or US Principal Party In Interest (USPPI). Required if the Forwarding Agent value is 2. The USPPI is the party that receives the primary benefit, monetary or otherwise for the export sale. This party is usually the seller, manufacturer, wholesaler, or distributor based in the United States. This party can be a foreign entity if the foreign entity is in the United States at the time merchandise is purchased or obtained.
IRS EIN Type	From the drop-down list, select the type of IRS/EIN number: DUNS Number Employer Identification Number Social Security Number
Sender IRS EIN	Type the IRS (Social Security Number) or EIN (Employer Identification Number) of the shipper.
Origin Freight Commit Code	From the list, select the origin freight commitment code: H1, H2, or H3 - defined below: H1 service area - Primary service area. H1 ZIP Codes are generally within a zero to 35-mile radius of the airport ramp location. H2 service area - Secondary service area. H2 ZIP Codes are generally within a 36 to 50-mile radius of the airport ramp location. H3 service area - Cartage agent service area. H3 ZIP Codes are outside a 50-mile radius of the airport ramp location. FedEx makes arrangements with third-party cartage agents for pickups for pickups from and/or deliveries to H3 areas and estimates the transit time.
Printer Name	Type the name of the printer to use for FedEx shipping labels. The printer settings in the Printer Map screen for the location override this setting.
Product Version	Nothing. The Parcel product version used by the FedEx Server will appear. This is formatted as follows: KWXX - where XX is two letters designating the origin type Next four numbers - the certified software version number Last four numbers - the carrier module version number
SED Filing Code	From the drop-down list, select the party that is filing the Shipper's Export Declaration for applicable international shipments. Shipper Carrier Currently, the only valid value is Shipper. FedEx no longer files SEDs on the shipper's behalf.
Shipper Phone No.	Type the shipper's phone number. The maximum length is 10 for US and Canada phone numbers, 15 for all other countries.
Validate Open Shipments	Select (check) this check box to validate open shipment calls before they are committed to the FedEx Ship Manager® Server database.
Validate Rate Requests	Select (check) this check box to validate rate requests before they are submitted to the FedEx Ship Manager® Server database.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Dangerous Goods Tab

Use the Dangerous Goods tab on the FedEx Account Defaults page to enter information for use when shipping FedEx hazardous materials or dangerous goods shipments.

In this box...	Type the...
Departure Airport	Airport code for the airport from which most of your FedEx dangerous goods shipments will depart. Most airport codes are three characters.

Signatory section

In this box...	Type the...
Name	Name of the person who will sign the hazardous materials/dangerous goods form.
Title	Title of the person who will sign the hazardous materials/dangerous goods form. For example, 'Dispatch Supervisor'.
Place	City name where the person will sign the hazardous materials/dangerous goods form.

Responsible Party section

In this box...	Type the...
Name	Name of the person who is responsible for making arrangements for the package according to section 1.3.3.1 of the DG Regulation Manual. This is required only when shipping infectious substances (class 6.2).
Phone	Phone number of the person who is responsible for the package. This is required only when shipping infectious substances (class 6.2).

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

IATA DG Validation (Non-US Origin) section
The FedEx Ship Manager ® Server (FSMS) version 20.x enables configuration of IATA dangerous goods validations. This feature is available for intra-country (domestic) and/or export transactions.
Notes:

Validation requirements can differ by origin country.
Dangerous Goods validation is carried out by default for all US origin transactions.

For non-US origins, users can select the following options:

In this box...	Do the following...
Domestic	Select (check) this check box to enable IATA Dangerous Goods Validation for domestic shipments. Note: By default, this option is not selected.
International	Select (check) this check box to enable IATA Dangerous Goods Validation for international shipments. Note: By default, this option is not selected.
Transborder	Select (check) this check box to enable IATA Dangerous Goods Validation for transborder shipments. Notes: By default, this option is not selected. For example, a shipment from the "lower 48" in the US to Alaska and passing through Canada is a transborder shipment but not an international shipment. Shipments within the European Union can also fall into this category. A transborder shipment might not need to pass through customs.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Transborder Tab

Use the Transborder tab on the FedEx Account Defaults page to enter the US return address for Transborder Distribution shipments for this FedEx account.

In this box...	Type the...
Company Name	Company name of the return address.
Contact	Contact person's name at the return address.
Address 1	Street address of the return address.
Address 2	Additional address information (such as suite or floor) of the return address.
City	City of the return address.
State/Province	State or province code of the return address.
Postal Code	Postal code of the return address.
Phone	Phone number of the return address.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Tracking Tab

This screen is for informational purposes only. The Tracking WebService URL field displays the FedEx URL and user information for the Web Service Tracking that Parcel uses when tracking FedEx shipments.

In this box...	This information is displayed...
CSP User Key	The user key for the FedEx Web Service tracking service.
CSP Password	The password for the FedEx Web Service tracking service.
Tracking Web Service URL	The Tracking WebService URL field displays the FedEx URL for Web Service Tracking; for example https://gatewaybeta.fedex.com:443/web-services.

Note: Parcel performs a Subscription Request required to subscribe to the tracking service on the FedEx Web Services server. The meter number, user key, and password information that are received back are saved and used for all tracking transactions.

Tracking for origins outside the US and Canada

Caution: For origins outside the US and Canada, shippers need to obtain a special Web Service account from FedEx to enable tracking. See your local FedEx representative to obtain this account. The information you receive for this account includes the following:

Account Number
Meter Number
Key
Password

To enable tracking in Parcel, the following values need to be inserted directly into the shipper_defaults table of the fedexdb database:

In this field of the shipper_key column...	Insert this value in the shipdef_value column...
track_meter	The Meter Number you received from FedEx.
track_password	The Password you received from FedEx.
track_user	The Key you received from FedEx.

You can add these values to the database manually or you can request that Support perform this task.

Report Tab

Use the Reports tab on the FedEx Account Defaults screen to enter settings related to the Jasper reporting tool.

Caution: If a field on this tab contains a default value, it is strongly recommended that you accept the default and do not try to enter a different value. If you think you need to change any of the default settings, contact Customer Support first at: 1.866.649.1900.

In this box...	Do this...
Output report location	Type in the path name where you want the Jasper report files to be saved.
Report version	Accept the default Jasper Reports version unless you are positive that the actual version differs from the default value.
Jasper Server Location	Accept the default. This is the path to the directory where the Jasper report service is started. The current service deployment directory is fixed. Unless the service will be moved to another directory, the service should be started from the default location, which is: ..\Java
Jasper Server Name	If the current service name appears as the default, accept the default. Otherwise, type the Jasper report service name. Unless the service will be recompiled with a new service name, the default service name should be used to start the report service.
Jasper Server IP	Type in the IP address for the Jasper server or accept the default.
Jasper Server Port	Type in the Port Number for the Jasper server or accept the default.
API Report Printer Name	Type in the name of the printer to use for printing Jasper reports.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to revert to the original values.

Time in Transit Tab

Use the Time In Transit tab on the FedEx Account Defaults page to enter settings related to time-in-transit for this FedEx account.

In this box...	Do this...
Calculate Transit Time	To specify the calculation of transit times, select (check) this check box. Parcel uses the data that you import using the Import Time in Transit Files screen for transit time calculations. *Note:* This check box is unselected by default.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to cancel changes and revert to original values.

How Parcel Determines Time in Transit for FedEx Shipments

Parcel first sends a request to the FedEx Ship Manager® Server for time in transit data. If data is returned by this method, Parcel uses this for Delivery Date and Delivery Time. If, for some reason, no data is returned, Parcel uses local data created by importing time in transit files .

Notes:

For some FedEx services, the FedEx Ship Manager® Server does not return time in transit data. For these services, you must use imported time in transit data.
For information on configuring Time in Transit calculations, see the following Help topics:
- Overview of TINT Calculation
- Time in Transit Files
- Importing Time in Transit Files

ETD|IGC Tab

Use the ETD|IGC tab on the FedEx Account Defaults screen to enter settings related to Electronic Trade Documents (ETD) / International Ground Consolidation (IGC) Shipments for this FedEx Account.

ETD

The Electronic Trade Document (ETD) is a simple, efficient and reliable solution allows you to upload trade or customs documents electronically for FedEx non-document international shipments and therefore helps you in avoiding delays at customs and deliver the shipments on time.

Electronic Trade Documents (ETD) section

In this box...	Do this...
Enable (ETD)	Select this check box to enable for FedEx Electronic Trade Documents (ETD) shipments. *Note:* This check box is unselected by default. This field is mandatory for FedEx IGC and FedEx International Connect Plus® (FICE) shipments. Pre-requisite: In FSMS Server Meter Settings we need to enable ETD Allowed checkbox.
Document Upload Confirmation	Select this check box to receive upload confirmation from FedEx after uploading the customs documents. *Note:* This check box is selected by default. It is recommended to select this check box when Enable (ETD) is enabled.
Document Source	From the drop-down list, select the document source option for the ETD document upload. FedEx Generated Documents Parcel Generated Documents (Automatic) Customer Generated Documents *Note:* Parcel Generated Documents (Automatic) is selected by default.

Select the Documents to Upload section

In this box...	Do this...
Commercial Invoice	Select this check box to upload the Commercial Invoice document for ETD shipment. This is a mandatory field. *Note:* This check box is selected by default.
Certificate of origin	Select this check box to upload the Certificate of origin document for ETD shipment. *Note:* This check box is unselected by default.
Pro Forma Invoice	Select this check box to upload the Pro Forma Invoice document for ETD shipment. *Note:* This check box is unselected by default.
USMCA - Certificate of origin	Select this check box to upload the USMCA - Certificate of origin document for ETD shipment. *Note:* This check box is unselected by default.
USMCA - Commercial Invoice - Certificate of origin (CI-COO)	Select this check box to upload the USMCA - Commercial Invoice - Certificate of origin (CI-COO) document for ETD shipment. *Note:* This check box is unselected by default.
SLI (Shipper's Letter of Instruction)	Select this check box to upload the SLI (Shipper's Letter of Instruction) document for ETD shipment. *Note:* This check box is unselected by default.
Other Document 1	Select this check box to upload any other customs document for ETD shipment. *Note:* This check box is unselected by default.
Other Document 2	Select this check box to upload any other customs document for ETD shipment. *Note:* This check box is unselected by default.
Signature Image File Path	Enter the folder path of the Signature Image existing in the Parcel Server for ETD shipment. This is used in Commercial Invoice document. *Note:* Maximum image dimension can be 3.5 inches x 0.5 inches (240 x 25 pixels). Acceptable file types for Signature image are .gif .jpg and .png.
Letterhead Image Path	Enter the folder path of the Company Letterhead Image existing in the Parcel Server for ETD shipment. This is used in Commercial Invoice document. *Note:* Maximum image dimension can be 7.5 inches x 1.6 inches (700 x 50 pixels). Acceptable file types for Letterhead image are .gif .jpg and .png.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to cancel changes and revert to original values.

IGC

The International Ground Consolidation (IGC) shipment allows you to consolidate your multiple international ground packages to and from US and Canada into a single consolidated shipment that clears customs as a single entity. After the customs clearance, packages get deconsolidated and routed to their final destinations.

Notes:

IGC is valid only for FedEx International Ground service.
ETD is mandatory for FedEx IGC shipments.
ETD with 'FedEx Generated Documents' Document Source and 'Commercial Invoice' Document Upload type is mandatory for FedEx IGC shipments.

International Ground Consolidation (IGC) section

In this box...	Do this...
International Ground Consolidation (IGC)	Select this check box to enable the FedEx International Ground Consolidation (IGC) shipments between US and Canada. *Note:* This check box is unselected by default.

Click SAVE in the lower-right corner of the screen to save any changes you made or click CANCEL to cancel changes and revert to original values.

Defaults

Label Tab

Use the Label tab on the FedEx Defaults page to enter label settings for this FedEx account.
Ship From section

In this box...	Type the...
Company Name	"Ship From" company name to appear on FedEx labels.
Attention	"Ship From" attention name to appear on FedEx labels.
Address 1	"Ship From" street address to appear on FedEx labels.
Address 2	"Ship From" additional address information (such as suite or floor) to appear on FedEx labels.
Address 3	"Ship From" additional address information (such as suite or floor) to appear on FedEx labels.
City	"Ship From" city name to appear on FedEx labels.
State/Province	Two-letter abbreviation for the "Ship From" city or province to appear on FedEx labels.
Postal Code	"Ship From" postal code to appear on FedEx labels.
Country	From the drop-down list, select the "Ship From" country to appear on FedEx labels.
Phone	"Ship From" phone number to appear on FedEx labels. The maximum length is 10 for US and Canada phone numbers, 15 for all other countries.
Line Home	Type the key that identifies the line home for the label. For example, 10,10.
